Cast Stone String courses are used as decorative features which break up the expanse of brick or stone walling, often used at floor levels to differentiate between floors.
Cast Stone String Courses are manufactured to replicate natural stone Plinths & String Courses and come in six standard colours: Bath, Buff, Holyrood, Portland, Glamis Red & Sherwood.
Our product range includes:
Stone String Course is often used in conjunction with other cast stone architectural products such as wall plinths and quoin stones.
All Cast Stone products are UKCA/CE marked where appropriate.
Technical Information
See all available sizes in table below.
View our Technical Information on our Technical Information page.
Please contact our team for Declaration of Performance. Email technical@ibstock.co.uk
Get in Touch
To speak to a member of our sales team call 0333 234 3434, or click the button below to use our contact form.
For technical enquiries contact our team: masonry@ibstock.co.uk

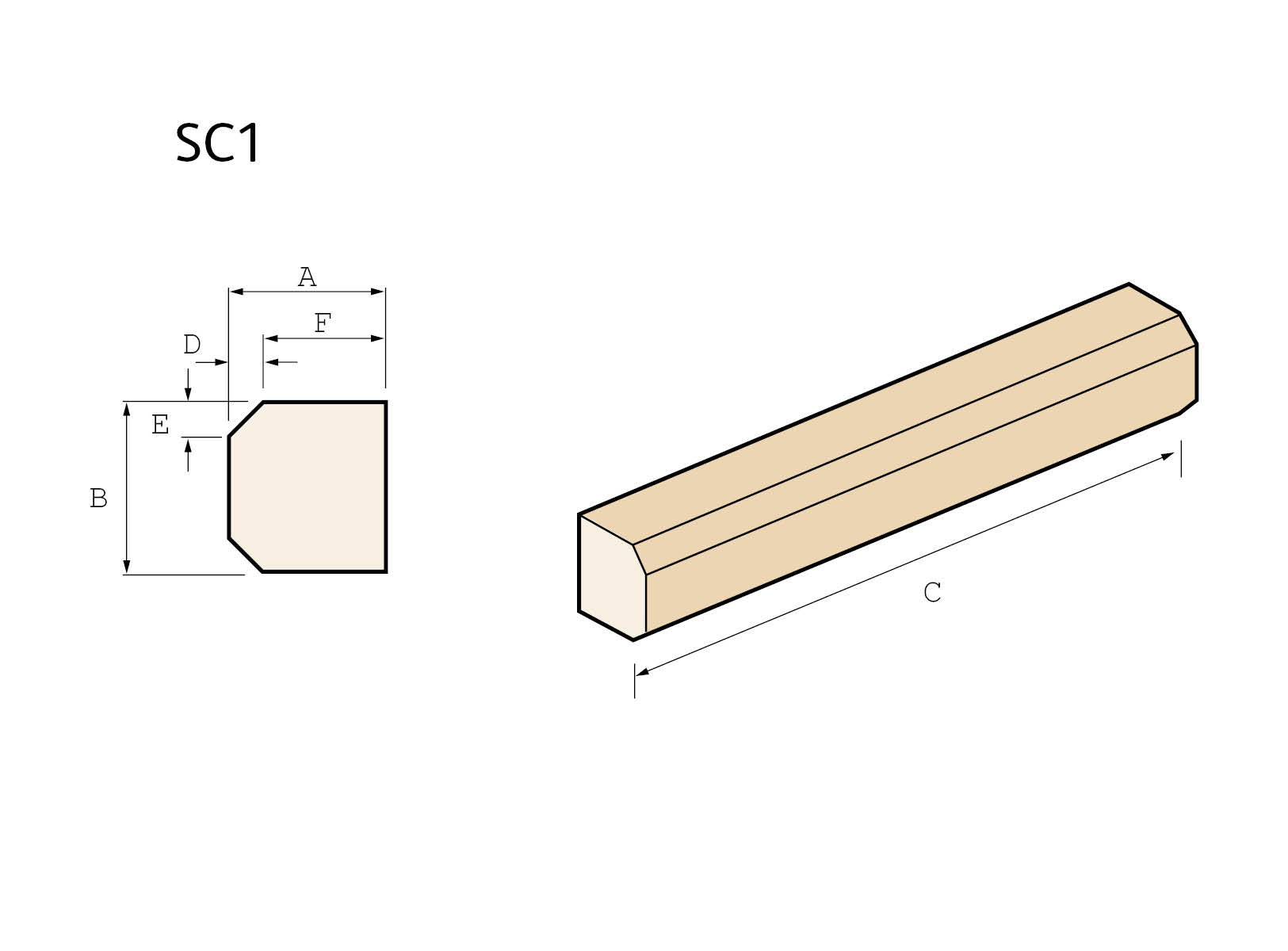

| Code | A | B | C | D | E | F | Weight (Kg) |
|---|---|---|---|---|---|---|---|
| SC1 | 130 | 140 | 890 | 30 | 30 | 100 | 32 |
| SC1-90E | 130 | 140 | 245 | 30 | 30 | 100 | 13 |
| SC1-90INT | 130 | 140 | 315 | 30 | 30 | 100 | 17 |

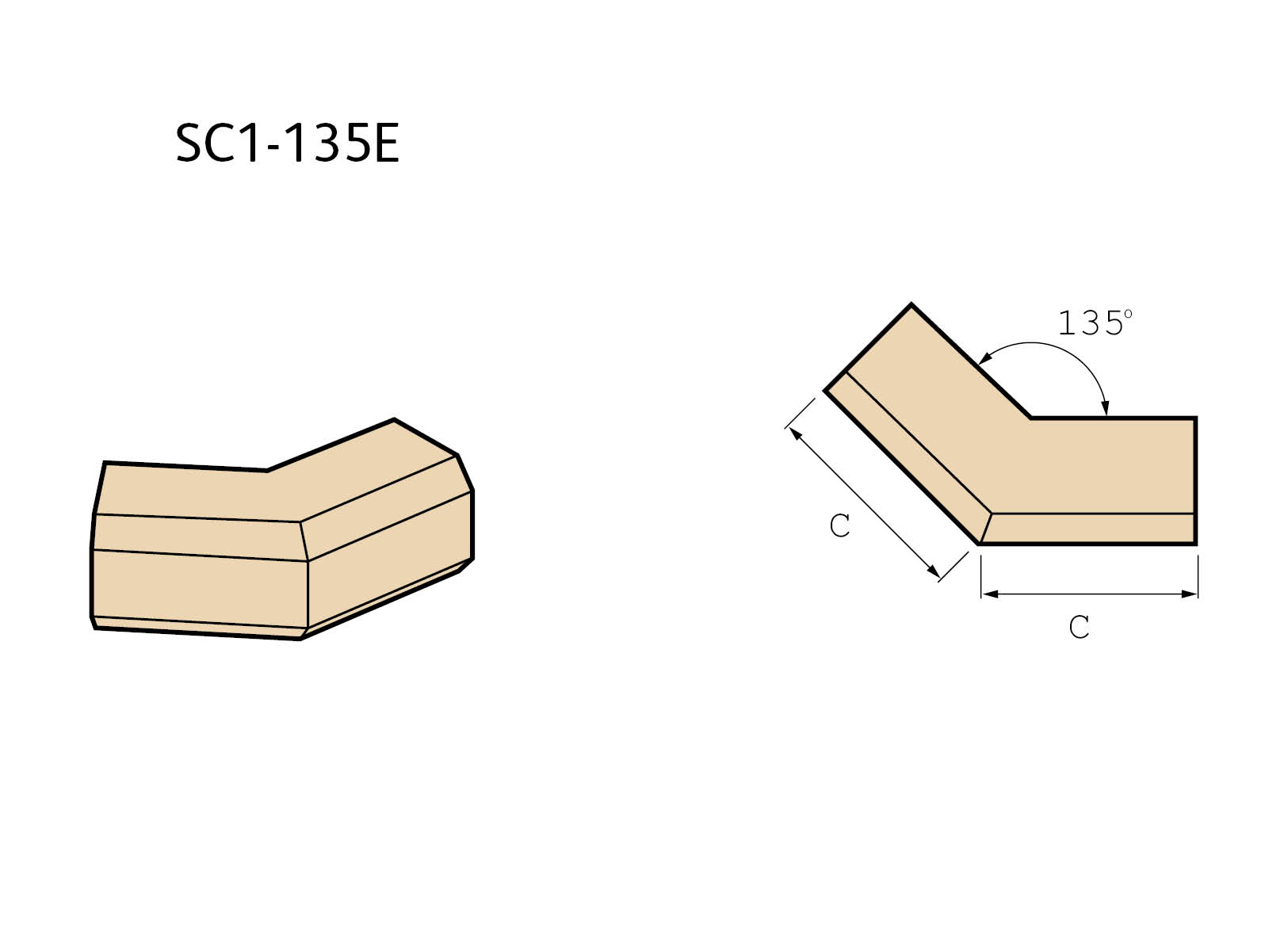

| SC1-135E | 130 | 140 | 227 | 30 | 30 | 100 | 14 |
| SC1-135INT | 130 | 140 | 256 | 30 | 30 | 100 | 17 |
| SC2 | 130 | 215 | 440 | 30 | 30 | 100 | 25 |
| SC2-90E | 130 | 215 | 245 | 30 | 30 | 100 | 20 |
| SC2-90INT | 130 | 215 | 315 | 30 | 30 | 100 | 29 |
| SC2-135E | 130 | 215 | 227 | 30 | 30 | 100 | 23 |
| SC2-135INT | 130 | 215 | 256 | 30 | 30 | 100 | 26 |
| SC3 | 150 | 140 | 890 | 50 | 105 | 100 | 37 |
| SC3-90E | 150 | 140 | 265 | 50 | 105 | 100 | 15 |
| SC3-90INT | 150 | 140 | 315 | 50 | 105 | 100 | 20 |
| SC3-135E | 150 | 140 | 236 | 50 | 105 | 100 | 17 |
| SC3-135INT | 150 | 140 | 256 | 50 | 105 | 100 | 19 |
| SC4 | 217 | 290 | 440 | 115 | - | 102 | 39 |
| SC4-90E | 217 | 290 | 330 | 115 | - | 102 | 34 |
| SC4-90INT | 217 | 290 | 318 | 115 | - | 102 | 42 |
| SC4-135E | 217 | 290 | 262 | 115 | - | 102 | 36 |
| SC4-135INT | 217 | 290 | 258 | 115 | - | 102 | 40 |
| SC5 | 217 | 215 | 440 | 115 | - | 102 | 32 |
| SC5-90E | 217 | 215 | 330 | 115 | - | 102 | 28 |
| SC5-90INT | 217 | 215 | 318 | 115 | - | 102 | 34 |
| SC5-135E | 217 | 215 | 262 | 115 | - | 102 | 30 |
| SC5-135INT | 217 | 215 | 258 | 115 | - | 102 | 32 |
| SC6 | 157 | 140 | 890 | 55 | - | 102 | 34 |
| SC6-90E | 157 | 140 | 270 | 55 | - | 102 | 14 |
| SC6-90INT | 157 | 140 | 318 | 55 | - | 102 | 19 |
| SC6-135E | 157 | 140 | 238 | 55 | - | 102 | 15 |
| SC6-135INT | 157 | 140 | 258 | 55 | - | 102 | 18 |
| SC7 | 140 | 70 | 890 | 40 | - | 100 | 16 |
| SC7-90E | 140 | 70 | 255 | 40 | - | 100 | 6 |
| SC7-90INT | 140 | 70 | 315 | 40 | - | 100 | 9 |
| SC7-135E | 140 | 70 | 232 | 40 | - | 100 | 7 |
| SC7-135INT | 140 | 70 | 256 | 40 | - | 100 | 8 |
